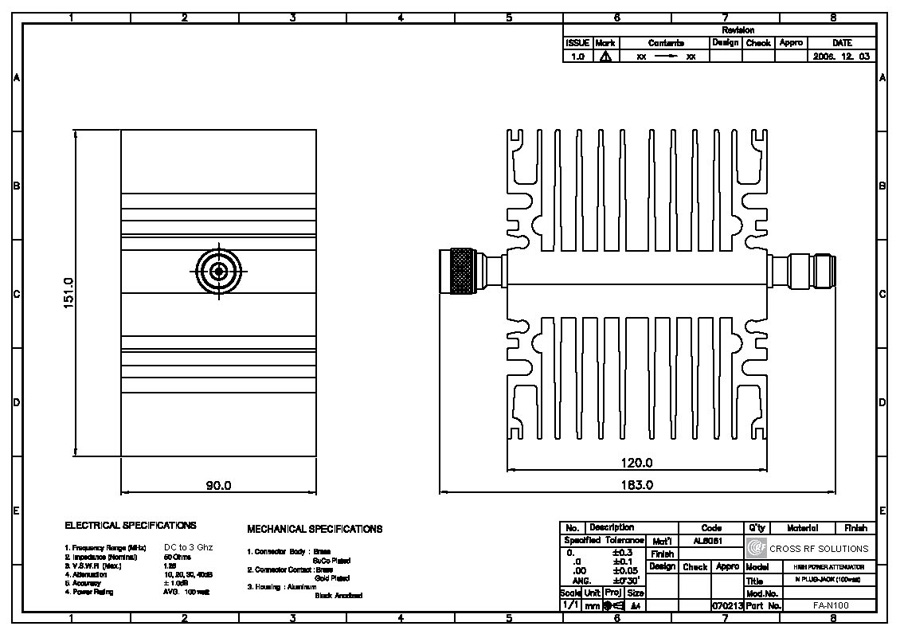

Cross RF :: N type 100 watt Fixed Attenuator; DC to 3 GHz
Cross RF :: N type 80 watt Fixed Attenuator; DC to 3 GHz
CROSS RF SOLUTIONS (http://www.crossrf.com)

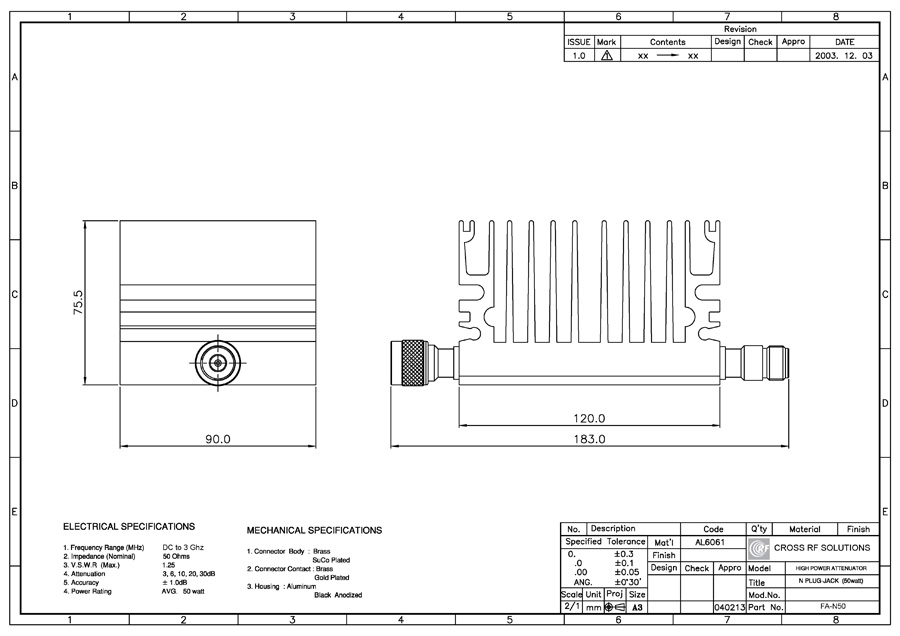

Cross RF :: N type 50 watt Fixed Attenuator; DC to 3 GHz
CROSS RF SOLUTIONS (http://www.crossrf.com)

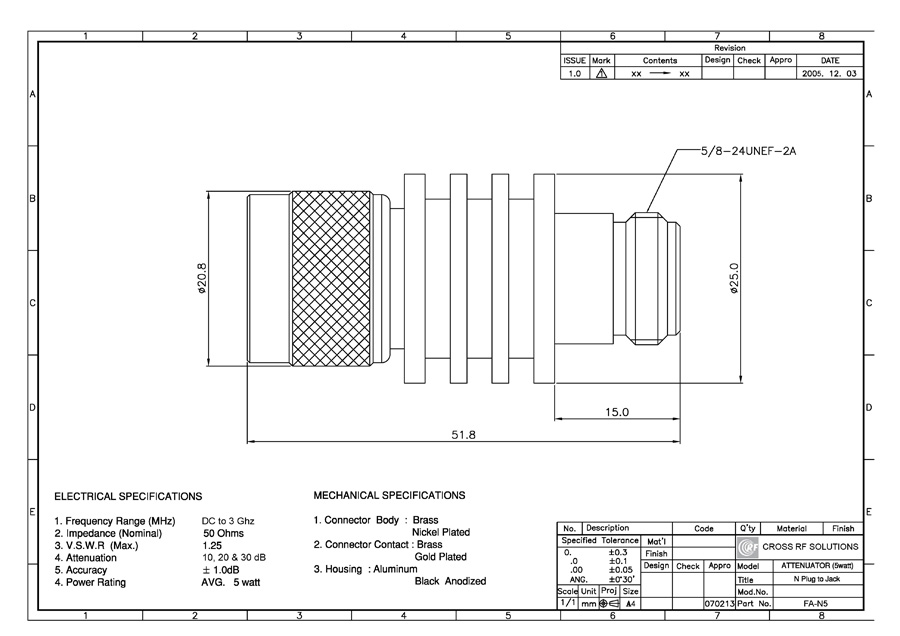

Cross RF :: N type 5 watt Fixed Attenuator; DC to 3 GHz
CROSS RF SOLUTIONS
Cross RF :: N type 2 watt Fixed Attenuator; DC to 3 GHz
CROSS RF SOLUTIONS
Technical Glossaries
Bare Copper (BC)
Tinned Copper (TC)
Silver Plated Copper (SC)
Copperweld (CW)
Polyethylene (P)
Air Spaced Polyethylene (ASP)
Polyvinyl Chloride (PVC)
Cross RF – 50 Watt, 30 dB Fixed Attenuator test data
FA-N50-30 test data :: Cross RF solutions
CROSS RF SOLUTIONS – SEMI-FLEX .141 CABLE
 CROSS RF SOLUTIONS - SF141 CABLE | |||||
| Specification | meet to MIL-C-17 | ||||
| Continuous working voltage | Max. 1900Vrms | ||||
| Operating temperature range | -40℃ ~ 125℃ | ||||
| Construction | |||||
| Material | Diameter (mm) | Diameter (inch) | Note | ||
| Center conductor | SPC | 0.92mm | 0.036 inch | Solid | |
| Dielectric | PTFE | 2.98mm | 0.117 inch | Solid | |
| Braid | TC | 3.58mm | 0.141inch | 100% Coverage | |
| TC : Tin Soaked on Tin plated Copper Braid | |||||
| Electrical Data | |||||
| Specification | Note | ||||
| Operating frequency | Max. 20 GHz | ||||
| Dielectric resistance | Min. 1000㏁.㎞ | at 20℃ | |||
| Test voltage | 5000Vrms | 1 min | |||
| Velocity of propagation | Nom. 69.5 % | ||||
| Capacitance | Max. 29.9 pF/ft | ||||
| Characteristic impedance | 50 ±2 Ω | ||||
| Weight | 36.0 kg/km | ||||
| Max. attenuation | 8.0dB/100ft (0.26dB/m) | at 500MHz | |||
| 12.0dB/100ft (0.39dB/m) | at 1GHz | ||||
| 21.0dB/100ft (0.69dB/m) | at 3GHz | ||||
| 29.0dB/100ft (0.95dB/m) | at 5GHz | ||||
| 45.0dB/100ft (1.48dB/m) | at 10GHz | ||||
| 70.0dB/100ft (2.30dB/m) | at 20GHz | ||||
| The data provided in this publication indicates nominal values unless stated otherwise. This is only valid for reference purposes only, and all information is subject to change without prior notice. Cross RF Solutions is not responsible to any possible misuse or user applications. | |||||
Cross RF :: We build Custom Cable Assemblies
 |  |  | ||||||||
 | | |||||||||
 |  |  |  |  | | |||||
 |  |  | | |||||||
 |  | | ||||||||
 |  | | ||||||||
 | | |||||||||
| | | | | | | | | | |
Copyright © 2007-2008 Cross RF ® RF.Crossrf.com All Rights Reserved.
This email address was given to us by you or by one of our customers. If you feel that you have received this email in error, please send an email to support@crossrf.com
This e-mail is sent in accordance with the US CAN-SPAM Law in effect 01/01/2004. Removal requests can be sent to this address and will be honored and respected.
LMR240 Cross Cable
Series 240 Low-Loss Coaxial Cable Type : LMR-240 (DW-240)
Cable Ordering Information
| Part Number | MI Number | NEC / CSA Listing | Remark |
|---|---|---|---|
| DW-240 | TU-1314 | none |
>
Characteristics
| Material | Detail | inches | mm |
| Inner Conductor | Bare Copper | 0.056 | 1.42 |
| Dielectric | Foamed Polyethylene | 0.150 | 3.81 |
| 1st Outer Conductor | Sealed APA Tape | 0.156 | 3.95 |
| 2nd Outer Conductor | 95% Tinned Copper Braid | 0.179 | 4.55 |
| 3rd Outer Conductor | — | — | — |
| 4th Outer Conductor | — | — | — |
| Floodant | — | — | — |
| Jacket | PE, Black | 0.240 | 6.10 |
| Twisted Pairs | — | — | — |
| Messenger | — | — | — |
| Mechanical Specifications | |||
| Minimum Bend Radius | 0.75 | 19.1 | |
| Product Weight | (less reel) | 34 lbs/kft | 51 kg/km |
Customers are reminded that they are SOLELY responsible for confirming that all products are properly installed and used In accordance with all applicable codes and regulations.
uncontrolled copy
All Rights Reserved,
Specifications subject to change without notice
| Electrical Specifications | |||
|---|---|---|---|
| Characteristic Impedance, Ω | 50 ± 3 | ||
| Velocity of Propagation, % | 85 | ||
| Capacitance, Nominal | 24.2 pF/ft | 79.4 pF/m | |
| DC Resistance | Ω / kft | Ω / km | |
| Inner Conductor | 3.54 | 11.60 | |
| Outer Conductor | 3.75 | 12.31 | |
| Loop | 7.29 | 13.91 | |
| Attenuation, Nominal @ 68 °F (20 °C) | ||
|---|---|---|
| Frequency, MHz | dB / 100 ft | dB / 100 m |
| 150 | 3.02 | 9.90 |
| 220 | 3.66 | 12.00 |
| 450 | 5.27 | 17.30 |
| 900 | 7.56 | 24.80 |
| 1500 | 9.88 | 32.40 |
| 1800 | 10.85 | 35.60 |
| 2000 | 11.49 | 37.70 |
| 2500 | 12.92 | 42.40 |
Notes:
Customers are reminded that they are SOLELY responsible for confirming that all products are properly installed and used In accordance with all applicable codes and regulations.
uncontrolled copy
All Rights Reserved,
Specifications subject to change without notice
