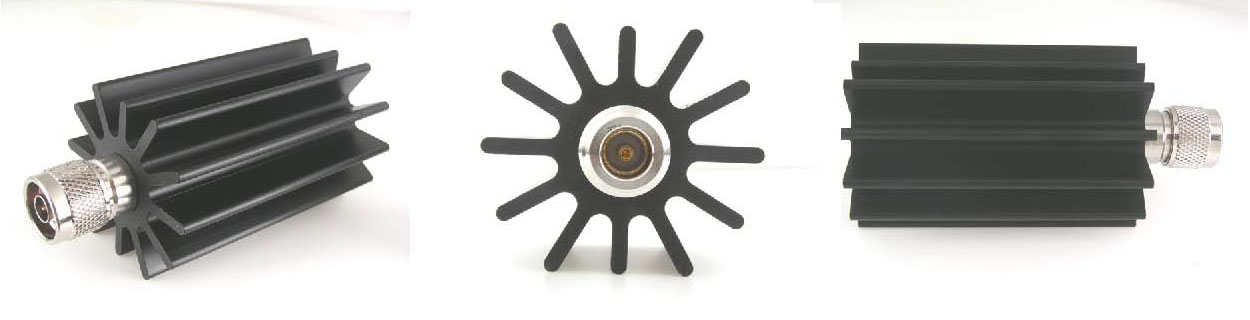

N 50 WATT MALE TERMINATION; DC TO 3 GHz

Posted on September 5, 2008 by Cross RF

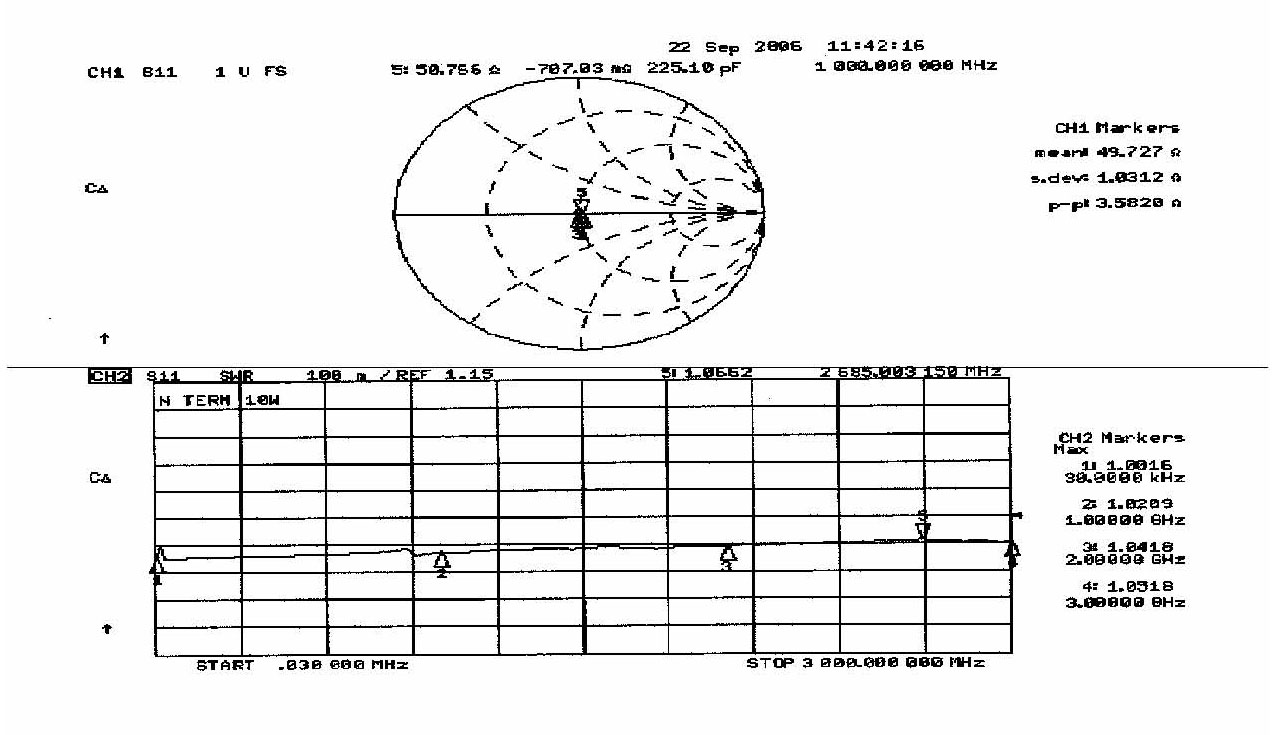

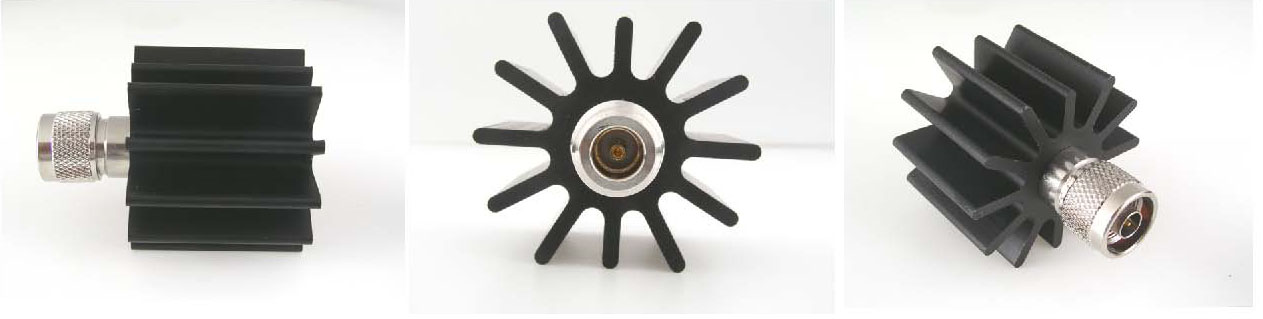

N 10 Watt Male Termination; DC to 3 GHz

Posted on September 5, 2008 by Cross RF

N 2 Watt Male Termination; DC to 6 GHz

Posted on September 5, 2008 by Cross RF

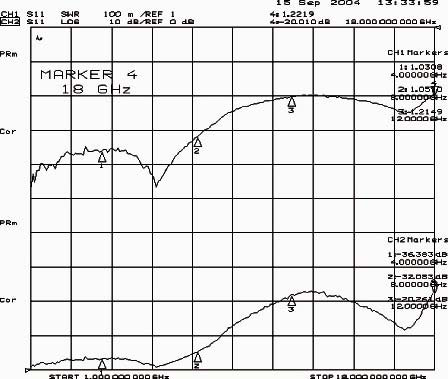

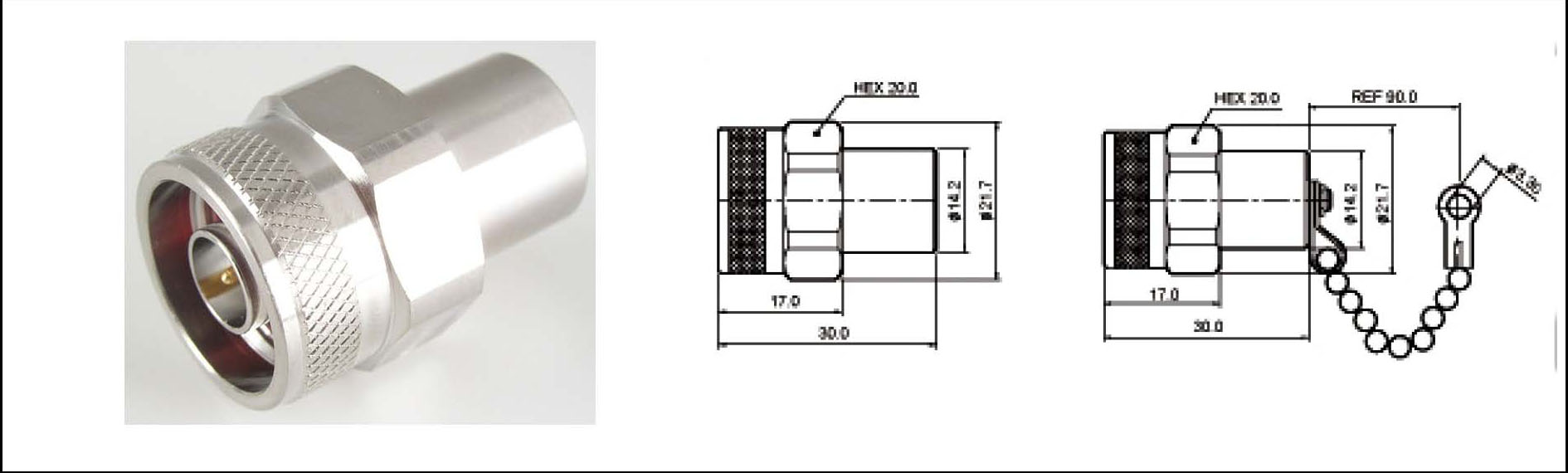

N 2 Watt Male Termination; DC to 18 GHz

Posted on September 5, 2008 by Cross RF

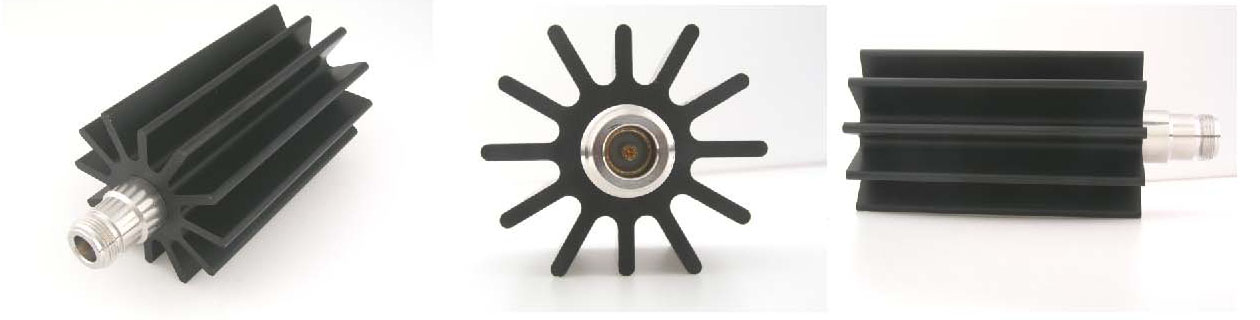

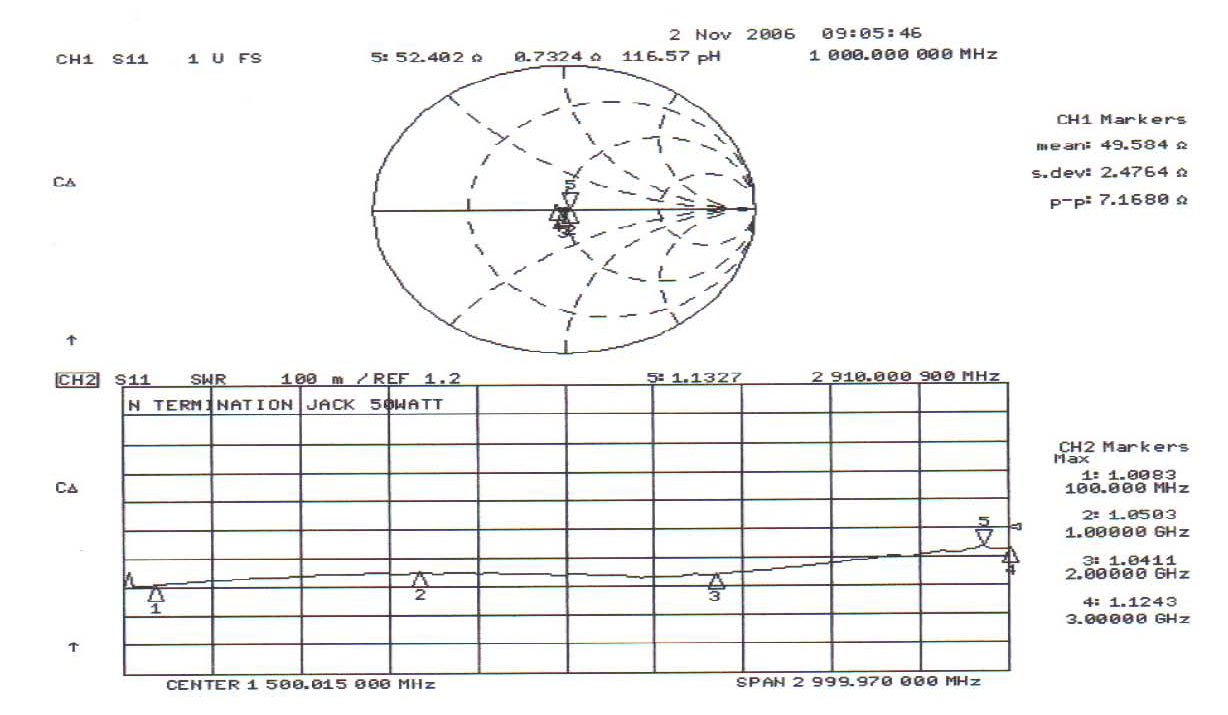

N 50 Watt Female Termination; DC to 3 GHz

Posted on September 5, 2008 by Cross RF

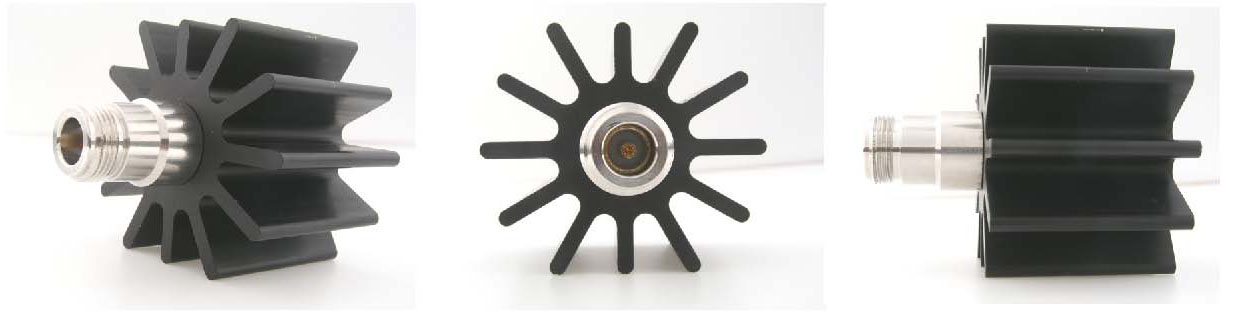

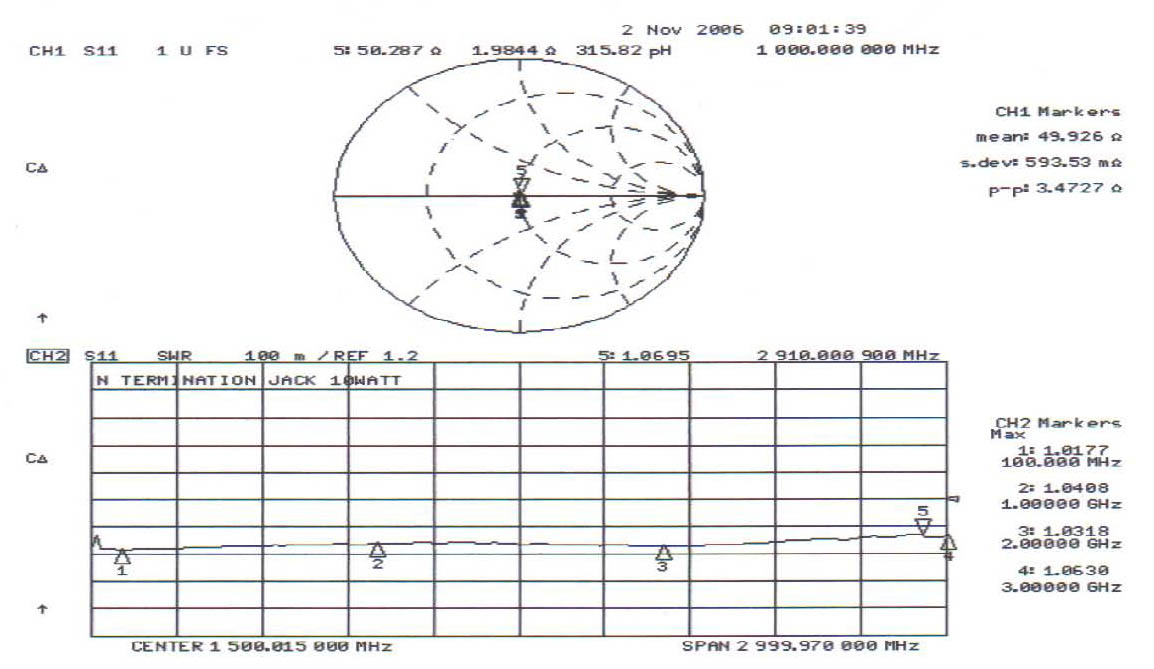

N 10 WATT FEMALE TERMINATION; DC TO 3 GHz

Posted on September 5, 2008 by Cross RF

SMA 1 watt Male Termination; DC to 6 GHz

Posted on September 4, 2008 by Cross RF

Product Info:

ELECTRICAL SPECIFICATIONS Power (Watts): 1 watt Freq. (GHz): 6 GHz VSWR (Max): 1.1:1 Connector Type: SMA Male / Female Impedance: 50Ω

MATERIAL SPECIFICATIONS Operating Temperature: -40 ~ 60′C Length: 12 mm Weight: 10g Housing: Nickel Plating: Gold RoHS Compliant: Yes PDF View: Cross Reference Pasternack PE6071

Test Data:

CROSS RF SOLUTIONS :: T901-PA1

SMA 1 watt Male to Female Fixed Attenuator; DC to 6 GHz

Posted on September 1, 2008 by Cross RF

Product Info:

ELECTRICAL SPECIFICATIONS Average Power (Watts) : 1 watt Freq. (GHz) : 6 GHz VSWR (Max) : 1.15:1 Attenuation Value (dB) : 1 to 30dB, every dB values are available by 1dB increment (* Contact us to customize your specific dBs) Attenuation Tolerance(Max) : ±0.5dB Impedance : 50Ω	MATERIAL SPECIFICATIONS Operating Temperature: -40 ~ 60′C Length: 20.9 mm Weight: 10g Housing: - Plating: Gold RoHS Compliant: Yes PDF View:
	Cross Reference Pasternack PE7161

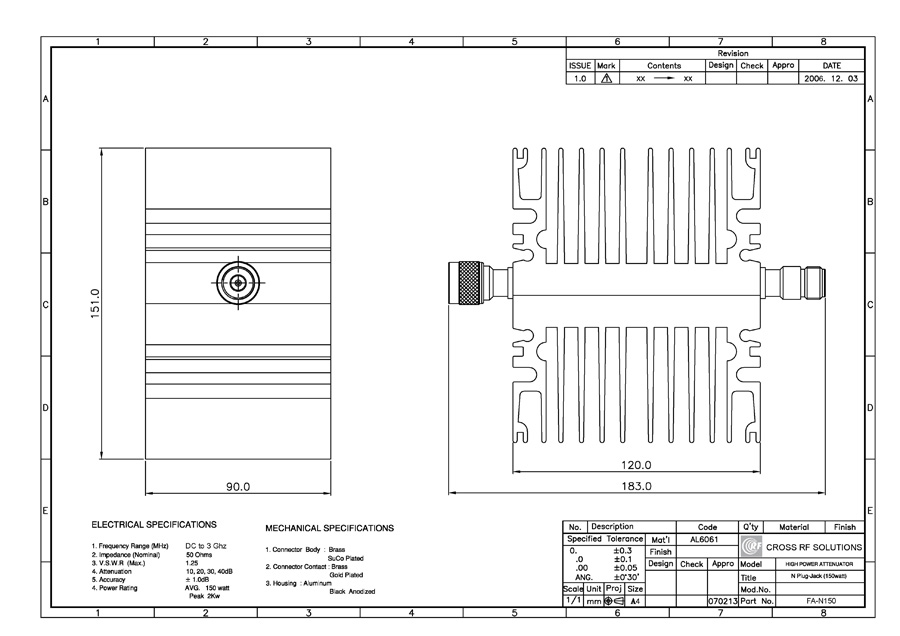

Cross RF :: N type 150 watt Fixed Attenuator; DC to 3 GHz

Posted on August 31, 2008 by Cross RF

CROSS RF SOLUTIONS (http://www.crossrf.com)

View PDF Version

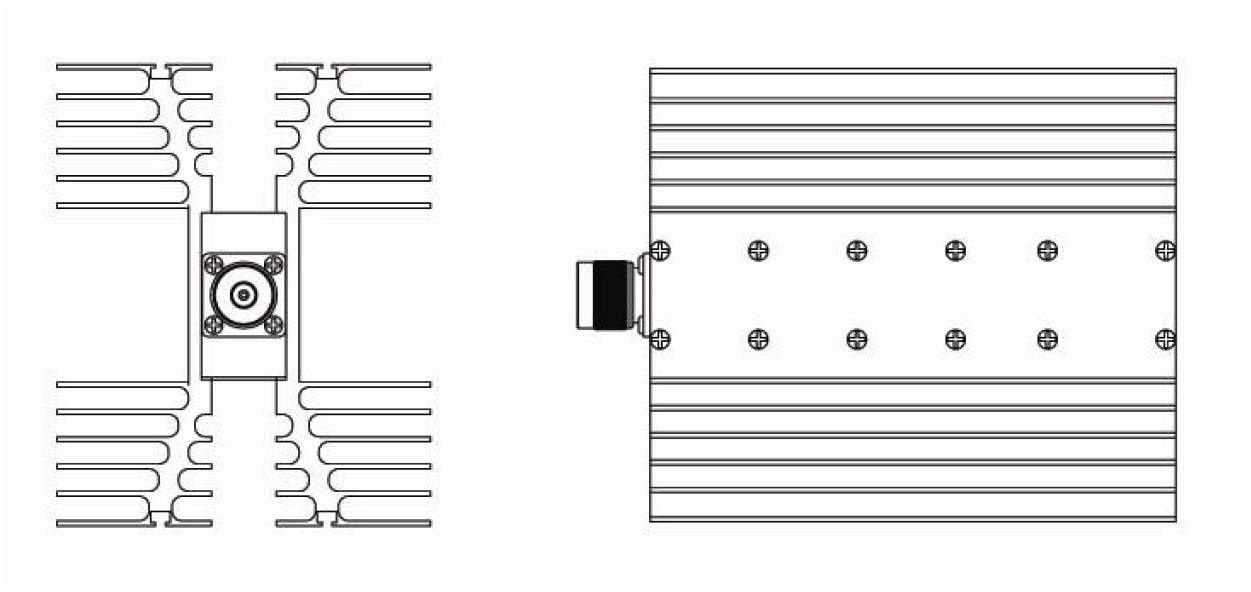

Cross RF :: N type 100 watt Fixed Attenuator; DC to 3 GHz

Posted on August 31, 2008 by Cross RF

CROSS RF SOLUTIONS (http://www.crossrf.com)

View PDF Version
