Posts Tagged ‘SMA’
Friday, February 13th, 2009
SMA (SubMiniature version A) connectors are coaxial RF connectors developed in the 1960s as a minimal connector interface for coaxial cable with a screw type coupling mechanism. The connector has a 50 Ω impedance. It offers excellent electrical performance from DC to 18 GHz.
Designed in accordance with MIL-C-39012 specifications, SMA lineup has one of the most extensive variety of applications including Semi-Flexible/Flexible cable, Receptacle, PCB, and Reverse Polarity option.
|
Requirement
|
MIL-C-39012Paragraph
|
Specification
|
|
|
|
| ELECTRICAL DATA |
| Impedance |
|
50Ω |
| Frequency range |
|
Semi-Rigid Cable : DC-18GHz |
| Flexible Cable : DC-12.4GHz |
| Contact current |
|
DC 2.0A max. |
| Working voltage |
|
Semi-Rigid Cable : 1000V |
| Flexible Cable : 750V |
| Contact resistance |
3-16 |
Center contacts : 3.0 mΩ |
| Outer contacts : 2.5mΩ |
| Insulation resistance |
3-11 |
5000MΩmin. |
| Insertion loss |
3-27 |
0.05√f(GHz)dB |
| V.S.W.R |
3-14 |
≤ 1.15+0.02f(GHz) |
| RF leakage |
3-26 |
-60dBm min.between 2~3GHz |
|
|
|
| MECHANICAL DATA |
| Coupling nut torque |
|
12Ncm-170Ncm |
| Coupling nut retention force |
3-25 |
≥ 200N |
| Life |
3-15 |
500 matings. |
| Contact captivation |
3-14 |
≥ 27N |
|
|
|
| ENVIRONMENTAL DATA |
| Temperature range |
|
: -65℃~+125℃ |
| Corrosion resistance |
3-13 |
MIL-STD-202, Method 101,Condition
B. |
| Moisture resistance |
3-21 |
MIL-STD-202, Method 106. |
| Thermal shock |
3-20 |
MIL-STD-202, Method 107,Condition
B. |
| Vibration |
3-18 |
MIL-STD-202. Method 204,Condition
D. |
| Shock |
3-19 |
MIL-STD-202. Method 213,Condition
I. |
|
|
|
| MATERIALS |
| Bodies |
|
Brass or stainless steel |
| Female contacts |
|
Beryllium copper |
| Insulators |
|
PTFE Teflon |
| Gasket |
|
Silicone Rubber |
|
|
|
| PLATINGS |
| Bodies |
|
Gold plated or passivated |
| Center contacts |
|
Gold plated |
SMA INTERFACE DIMENSIONS
Click here to view SMA catalog page.
Tags: 50 ohm, Connectors, SMA, SubMiniature
Posted in RF connectors, RF news | No Comments »
Thursday, September 11th, 2008
Product Info:
| ELECTRICAL SPECIFICATIONS |
| Power (Watts): |
1 Watt (peak 1KW) |
| Freq. (GHz): |
20 GHz |
| VSWR (Max): |
- |
| Connector Type: |
SMA Male |
| Impedance: |
50Ω |
|
| MATERIAL SPECIFICATIONS |
| Operating Temperature: |
-55 ~ 125′C |
| Length: |
- |
| Weight: |
- |
| Housing: |
Brass |
| Plating: |
Gold |
| RoHS Compliant: |
 Yes |
|
| RETURN LOSS |
| DC to 4 GHz |
32 dB Max |
| 4 GHz ~ 12 GHz |
25 dB Max |
| 12 GHz ~ 20 GHz |
20 dB Max |
|
| Cross Reference |
| Pasternack |
PE6071 |
|
Test Data:
CROSS RF :: T901-PA1H
Tags: 1 watt, Dummy load, Dust Cap, Male cap, Pasternack PE6071, Protective cap, SMA, T901-PA1H, Termination
Posted in Terminations | No Comments »
Thursday, September 4th, 2008
Product Info:
| ELECTRICAL SPECIFICATIONS |
| Power (Watts): |
1 watt |
| Freq. (GHz): |
6 GHz |
| VSWR (Max): |
1.1:1 |
| Connector Type: |
SMA Male / Female |
| Impedance: |
50Ω |
|
| MATERIAL SPECIFICATIONS |
| Operating Temperature: |
-40 ~ 60′C |
| Length: |
12 mm |
| Weight: |
10g |
| Housing: |
Nickel |
| Plating: |
Gold |
| RoHS Compliant: |
Yes
|
| PDF View: |
 |
| Cross Reference |
| Pasternack |
PE6071 |
|

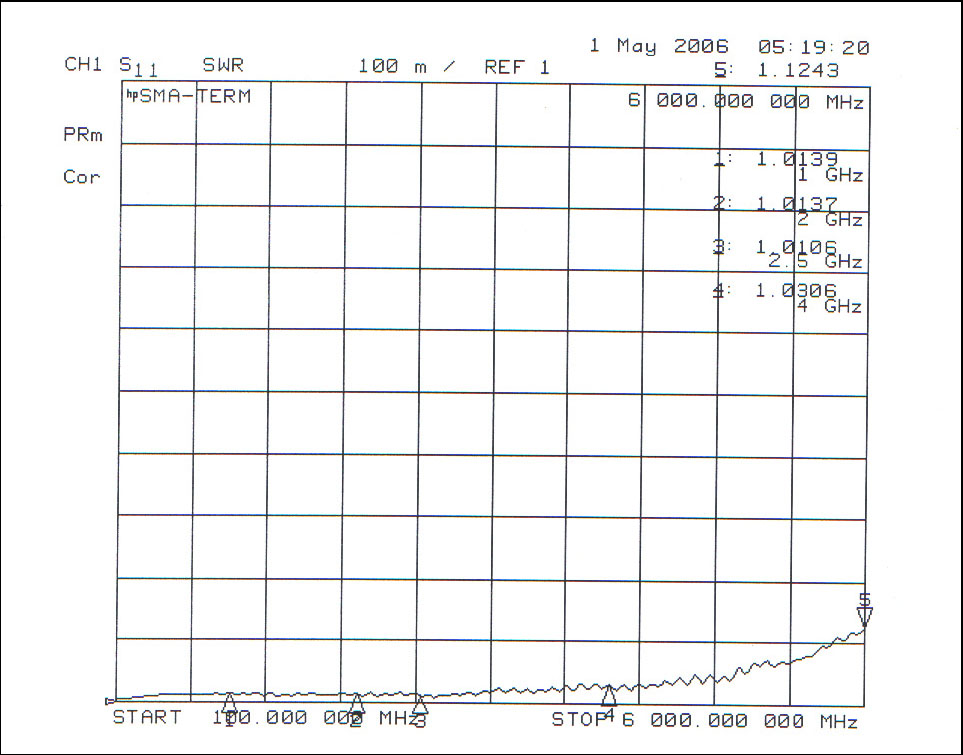

Test Data:
CROSS RF SOLUTIONS :: T901-PA1
Tags: 1 watt, Dummy load, Dust Cap, Male cap, Pasternack PE6071, Protective cap, SMA, T901-PA, Termination
Posted in RF news | No Comments »
Monday, September 1st, 2008
Product Info:
| ELECTRICAL SPECIFICATIONS |
| Average Power (Watts) : |
1 watt |
| Freq. (GHz) : |
6 GHz |
| VSWR (Max) : |
1.15:1 |
| Attenuation Value (dB) : |
1 to 30dB, every dB values are available by 1dB increment
(* Contact us to customize your specific dBs) |
| Attenuation Tolerance(Max) : |
±0.5dB |
| Impedance : |
50Ω |
|
| MATERIAL SPECIFICATIONS |
| Operating Temperature: |
-40 ~ 60′C |
| Length: |
20.9 mm |
| Weight: |
10g |
| Housing: |
- |
| Plating: |
Gold |
| RoHS Compliant: |
Yes
|
| PDF View: |
|
|
|
| Cross Reference |
| Pasternack |
PE7161 |
|
Tags: 1 watt, A901-FA, attenuator, Cross RF, Pasternack PE7161, SMA
Posted in Attenuators, RF news | No Comments »
Saturday, July 5th, 2008
| TECHNICAL CHARACTERISTICS |
|
|
Electrical specifications
|
|
Impedance
|
50Ω
|
|
Working temperature
|
-62 ~ +165 °C (PE cable : -40 ~ +85 °C)
|
|
Vibration
|
MIL-STD-202, Method 213
|
|
Frequency Range
|
Flexible cable : DC ~ 12.4GHz
Semi-Rigid cable : DC ~ 18GHz
|
|
Working Voltage
|
335V max
|
|
Withstand Voltage
|
1,000V rms
|
| Contact Resistance |
|
Center contact
|
≤ 3 mΩ
|
|
Outer Contact
|
≤ 2 mΩ
|
|
Insulation resistance
|
≥ 5,000 MΩ
|
|
Insertion loss
|
≤0.15 dB/6GHz
|
| VSWR |
|
Straight
|
Flexible cable : ≤1.10+0.002f
|
|
Semi-Rigid cable : ≤1.05+0.001f
|
|
Right angle
|
Flexible cable : ≤1.20+0.003f
|
|
Semi-Rigid cable : ≤1.10+0.001f
|
|
Durability ( Mating)
|
≥500 cycles
|
|
|
| Material and Plating |
|
|
Description
|
Material
|
Plating
|
|
Outer body
|
Brass
|
Gold plate
|
|
Contact pin
|
Brass
|
Gold plate
|
|
Socket
|
Beryllium
|
Gold plate
|
|
elastic contact
|
Berryllium
|
Gold plate
|
|
Insulator
|
PTFE
|
-
|
|
Pipe (Crimping suite)
|
Copper alloy
|
Nickel or Gold plate
|
|
O-ring sealing
|
Silastic
|
-
|
|
|
|
|
| Applicated standard |
|
| (1) MIL-C-39012 |
| (2) CECC 22110 |
| (3) IEC 60169-15 |
Tags: 50ohm, RF connectors, SMA
Posted in RF connectors | No Comments »
