7/16 (DIN connectors) are designed for use in communications systems with power levels of 100 watts per channel.
Deutsh Industries Norm (DIN) is an acronym for German standards that apply to 7/16 connectors and are gaining acceptance worldwide. They feature rugged design, high power transmission, and low intermodulation distortion.

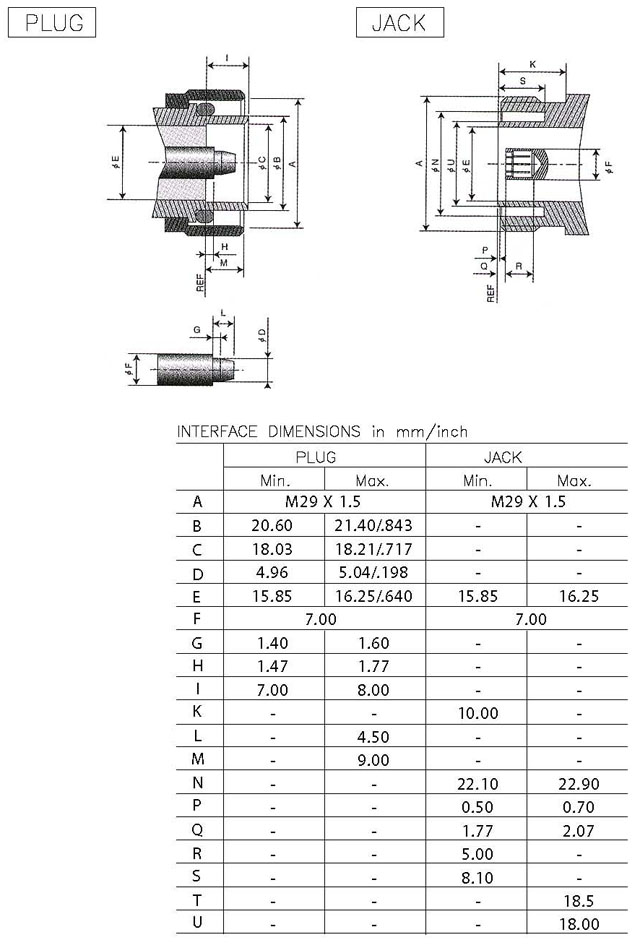

| Requirement | MIL-C-39012 Paragraph | Specification | ||
| ELECTRICAL DATA | ||||
| Impedance | 50Ω | |||
| Frequency range | DC 7.5GHz combination types: DC 1GHz | |||
| V.S.W.R | 1.10 max | |||
| Insertion loss | 0.05 × √Frequency(GHz) [dB] | |||
| RF leakage | ≥ 128dB | |||
| Dielectric withstanding voltage (at sea level) | 4.0 kV rms, 50Hz | |||
| -combination system | 2.0 kV rms, 50Hz | |||
| Working voltage (at sea level) | ≤ 2.7kV rms, 50Hz | |||
| -combination system | ≤ 1.0kV rms, 50Hz | |||
| Insulation resistance | ≥ 10⁴mΩ | |||
| Contact resistance – center contact | ≤ 0.4mΩ | |||
| ≤ 1.5mΩ | |||
| MECHANICAL DATA | ||||
| Coupling nut torque | ||||
| – recommended | 25Nm…30Nm / 221 in.-ibs…260in.-ibs | |||
| – proof torque | 35Nm / 310 in.-ibs | |||
| Coupling nut retention force | ≥ 1000N / 225.0 ibs | |||
| Contact captivation | ≥ 200N / 45.0 ibs | |||
| Durability(matings) | ≥ 500 | |||
| MATERIALS | ||||
| Bodies | Brass | |||
| Pin contact | ||||
| Outer contacts, jacks | Berylium copper | |||
| Socket contact | ||||
| Crimp ferrules | Copper | |||
| Insulators, standard version | PTFE(Teflon) | |||
| Gaskets | Silicone rubber | |||
